€3.24*
Lieferbar in 5-10 Werktagen **

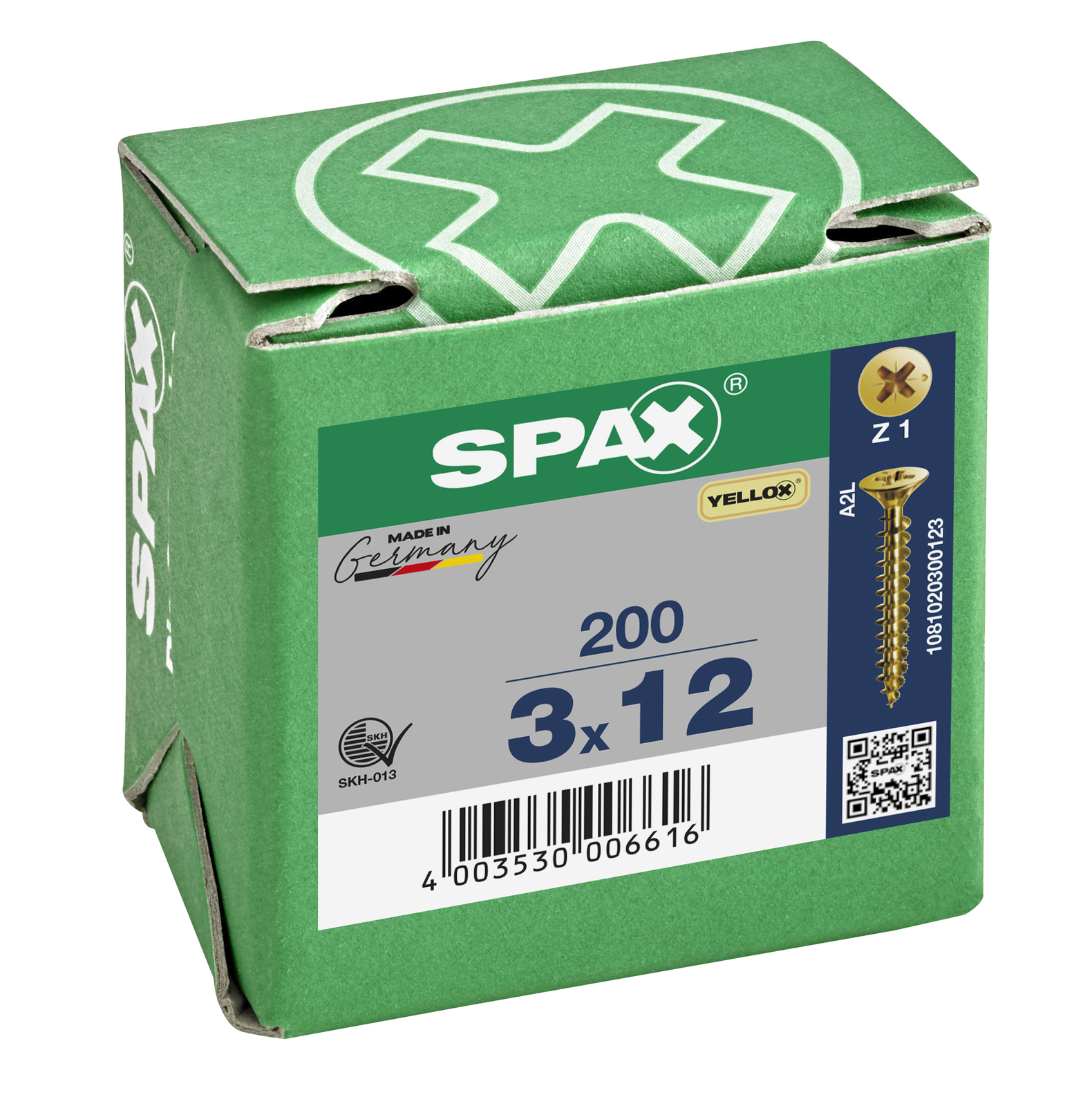

Product information "SPAX universal screw YELLOX - fully threaded, countersunk head, cross recess, S-tip"
What this means for you: You can drive more screws per battery charge, and you no longer have to worry about splintered wood ends!
Spax universal screws YELLOX - Features
The cross‑recess Z power drive is a development of the simple cross power drive by the Philips Screw Company. The difference is that the four flanks of the screwdriver blade do not taper towards the tip. This increases the lateral support for the bit and reduces the cam‑out effect. This occurs with conventional cross‑recess power drives because the tapering causes the torque of the cordless screwdriver to push the bit upwards.
The countersunk head (or flat countersunk head) mills a recess into the wood with its polygonal underside ("pockets") and can therefore be countersunk without additional countersinking of the screw hole. The countersunk head sits flush with the surface.
Unlike a partial thread, the full thread runs over the entire length of the screw. The more thread turns a screw has, the greater the tensile and compressive forces that can be transferred from the screw to the wood. Our full‑thread screws are used primarily for high‑load wood joints.
The term 4CUT refers to the square‑shaped design of the screw tip. These edges displace the wood fibres during driving and create space for the core diameter of the screw. This reduces the splitting pressure exerted by the core in the wood and prevents splintering of the wood near edges. The required torque of the cordless screwdriver is also reduced, as the core of the screw does not have to be "squeezed" into the wood.
Unlike conventional zinc‑plated screws, YELLOX is chromium(VI)‑free and therefore much more benign for people and the environment. YELLOX screws are more resistant to corrosion at the same coating thickness. Nevertheless, their use remains confined to indoor applications. As the name suggests, YELLOX‑coated screws have a yellowish appearance.
| Material: | Steel |
|---|---|
| Klingengröße: | Z1 |
| Zertifikat MIG: | ja |
| Kopf-Ø in mm: | 6 mm |
| Kopfwinkel: | 90º |
| Surface: | YELLOX |
| Gewindeform: | Vollgewinde |
| Kopfform: | Senkkopf |
| Screw diameter: | 3 mm |
| Drive: | Phillips head Z |
| Spitze: | S-Spitze |
| SPAX Wellenprofil: | 1 |
| Gewindelänge in mm: | 10 mm |
| Inhalt / Paket: | 200 Stück |
| Zertifikat SKH: | ja |
| Gewindeausziehparameter: | 14 N/mm² |
| Korrosionsschutzcode: | A2L |
| Kopfunterseite: | Bremsrippen |
| Zertifikat MPA: | ja |
| Multifunktionale Anwendungen im Innenbereich: | Multifunktionale Anwendungen im Innenbereich, Universeller Einsatz |
| Schraubenlänge in mm: | 12 mm |
SPAX – Hochleistungs-Schrauben für Profis und Heimwerker
SPAX steht für herausragende Qualität und Innovation im Bereich Verbindungstechnik. Als einer der führenden Hersteller bietet SPAX ein umfangreiches Sortiment an Hochleistungs-Schrauben, die sowohl für professionelle Handwerker als auch für ambitionierte Heimwerker entwickelt wurden. Die Produkte von SPAX zeichnen sich durch ihre exzellente Verarbeitung, Langlebigkeit und einfache Handhabung aus. Dank der einzigartigen SPAX-Technologie, wie der 4CUT-Spitze und der MULTI-Kopf-Form, ermöglichen sie ein präzises und schnelles Arbeiten in Holz, Metall und anderen Materialien. Entdecken Sie die vielfältigen und zuverlässigen Schrauben von SPAX in unserem Shop und profitieren Sie von erstklassigen Verbindungslösungen für Ihre Projekte. Vertrauen Sie auf SPAX – die Marke für Qualitätsschrauben "Made in Germany".
